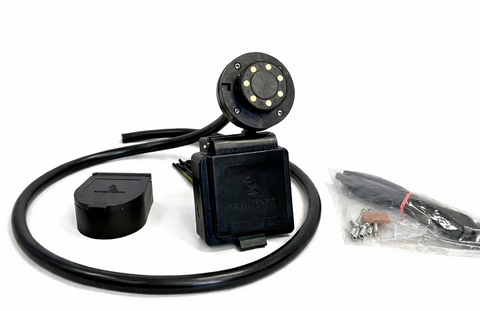

EZ Connector, Inc.'s S7-01P Premium S-Version Starter Kit includes both a hardwired female self-closing EZ Connector 7-wire connector for your pickup truck or agricultural tractor, plus a 4 ft male S-version hard-wired EZ Connector trailer cable or implement cable connector, as well as splice kits for both the truck/tractor and trailer/implement side.
This Product Bundle Includes the following items:
S7-05 - Hard-wired female/truck/tractor side connector, plus splice kit (butt connectors and heat shrink tubing; self-tapping screws)
S7-07 - Hard-wired male/trailer/implement side connector, plus splice kit (butt connectors and heat shrink tubing and zip tie); S7-12 self-closing storage holder (to mount on trailer/implement using included self-tapping screws)
What is NOT included:
This kid does NOT include a mounting bracket or installation clips, which are sold separately.
Mounting options include:
- Make your own bracket - See EZ Connector S-version dimensions document for more information (PDF file download);
- If installing underneath your bumper and an existing 4 bolt/screw mounting bracket for a 7 blade round RV connector is already in place, no additional mounting hardware is needed; simply screw the S7-05 connector in place of the existing connector;
- If installing in place of a bumper mounted clip-in 7 round RV plug plus 4 pin flat connector on a 2019 or later model year Ford, Chevy, GM, Dodge, Toyota or Nissan pickup with the partial circle over rectangle mounting hole, you will also need mounting clip S7-60B2. If installing in the bed of a late model pickup for a gooseneck or fifth wheel application and the existing OEM connector is installed on a raised plastic mounting plate, you will instead need mounting clip S7-60PB2.
- For earlier year models or other vehicles, or if you have questions or need assistance selecting the correct mounting clips or bracket, please see our Mounting Clips and Brackets page of our website, or call us at 559-686-5889.
Installation Instructions HERE
